CM-2053 waterborne epoxy dispersion

Features:

Low VOC, good water resistance, grindable, excellent salt spray resistance, high cost-effectiveness, strong formula adaptability

Application:

It can be used to prepare water-based two-component epoxy zinc phosphate primer, water-based two-component epoxy zinc rich paint, water-based epoxy floor paint, etc., suitable for steel structure, engineering machinery, rail transit, industrial machinery equipment and other fields

nature:

Appearance: Milky white viscous liquid

Solid content% (120 ℃, 2h): 52 ± 2

Viscosity, rotational viscometer, cps：1000-8000

Epoxy equivalent (g/eq, solid): 500-580

Application reference

1. CM-2053 is a dispersed type with excellent pigment wetting properties and can be ground together with pigments and fillers. During grinding, attention should be paid to controlling the grinding viscosity. Non ionic additives should be used as much as possible when grinding resin slurry, and additives containing organic amines that can react with epoxy groups should be avoided to ensure storage stability and shelf life stability in the later stage. When grinding, it is important to note that the temperature should not exceed 50 ℃.

2. CM-2053 needs to be used in conjunction with water-based epoxy curing agent CM-3801. When designing the ratio, attention should be paid to the epoxy equivalent and active hydrogen equivalent being 1:1.

3. The paint film prepared with CM-2053 can self dry at room temperature or be baked at low temperature. It is recommended that the suitable baking temperature should not exceed 80 ℃.

4. Recommended cosolvents: ethylene glycol butyl ether, propylene glycol methyl ether.

Water based epoxy iron red primer

Reference formula and instructions for water-based epoxy iron red primer

Process description:

Component A:

Put component A materials 1-3 into a suitable cylinder and disperse at low speed for 3-5 minutes. Then add material 4 and disperse at high speed for 15-20 minutes until there are no obvious particles and the fineness is qualified. After that, add material 5-10 and disperse for 10-20 minutes. Then, use a grinder to grind to a fineness of ≤ 35 μ m before entering the paint mixing stage. Add materials 11-13 in sequence and disperse evenly. Slowly add material 14 to adjust the viscosity. After the viscosity is qualified, package.

CM3801 active hydrogen equivalent 300 (by supply form)

Proportion description:

A:B=8： 1 (Quality ratio)

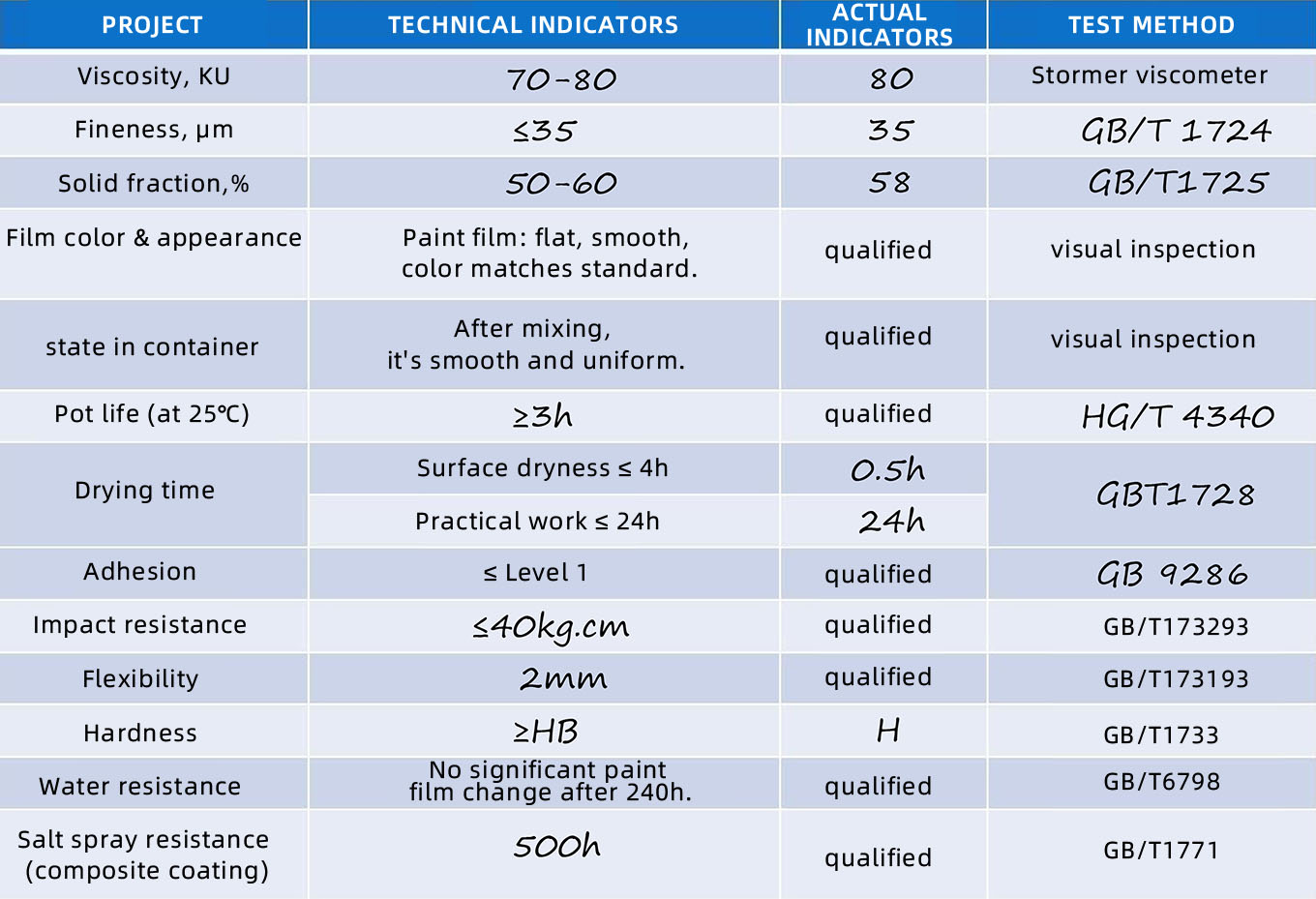

Technical indicators for inspection of waterborne epoxy iron red primer

Water based epoxy zinc rich paint (with a zinc content of 60%)

Reference formula and instructions for water-based epoxy zinc rich paint

Process description:

Component A:

Put component A materials 1-9 into the appropriate cylinder in sequence, high

Disperse quickly for 15-20 minutes until the material is evenly dispersed without any visible light

After displaying the particles, package them.

CM3801 active hydrogen equivalent 300 (by supply form)

Proportion description:

A:B=15： 1 (Quality ratio)

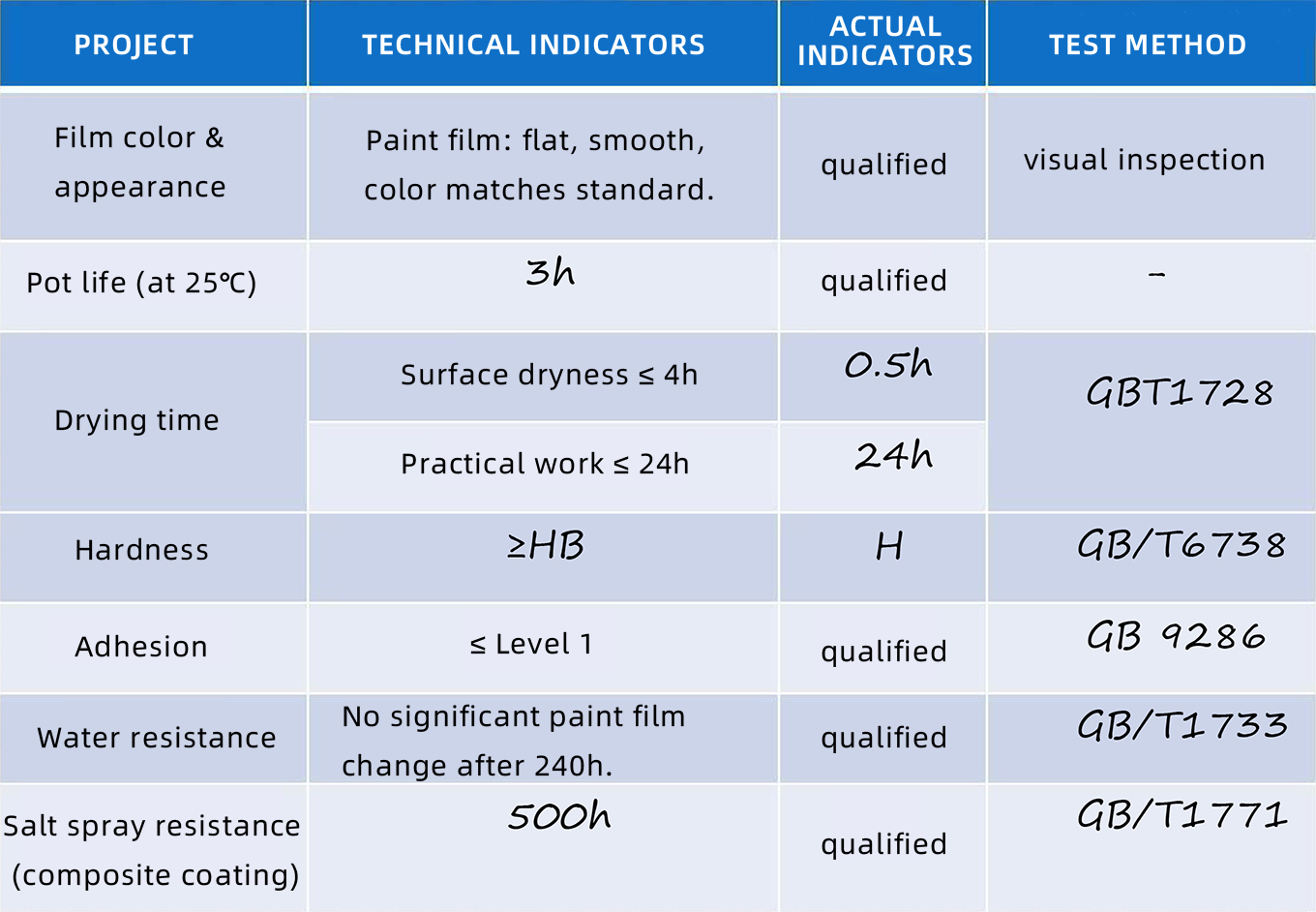

Technical specifications of waterborne epoxy zinc rich paint (with a zinc content of 60%)

Water based epoxy cloud iron intermediate paint

Reference formula and instructions for water-based epoxy cloud iron intermediate paint

Process description:

Component A:

Put component A materials 1-3 into a suitable cylinder in sequence, disperse for 3-5 minutes, then add materials 4-5 and disperse at high speed for 15-20 minutes. After materials 4-5 are evenly dispersed without obvious particles, add materials 6-9 and disperse at high speed for 30 minutes before packaging.

CM3801 active hydrogen equivalent 300 (by supply form)

Proportion description:

A：B=10： 1 (Quality ratio)

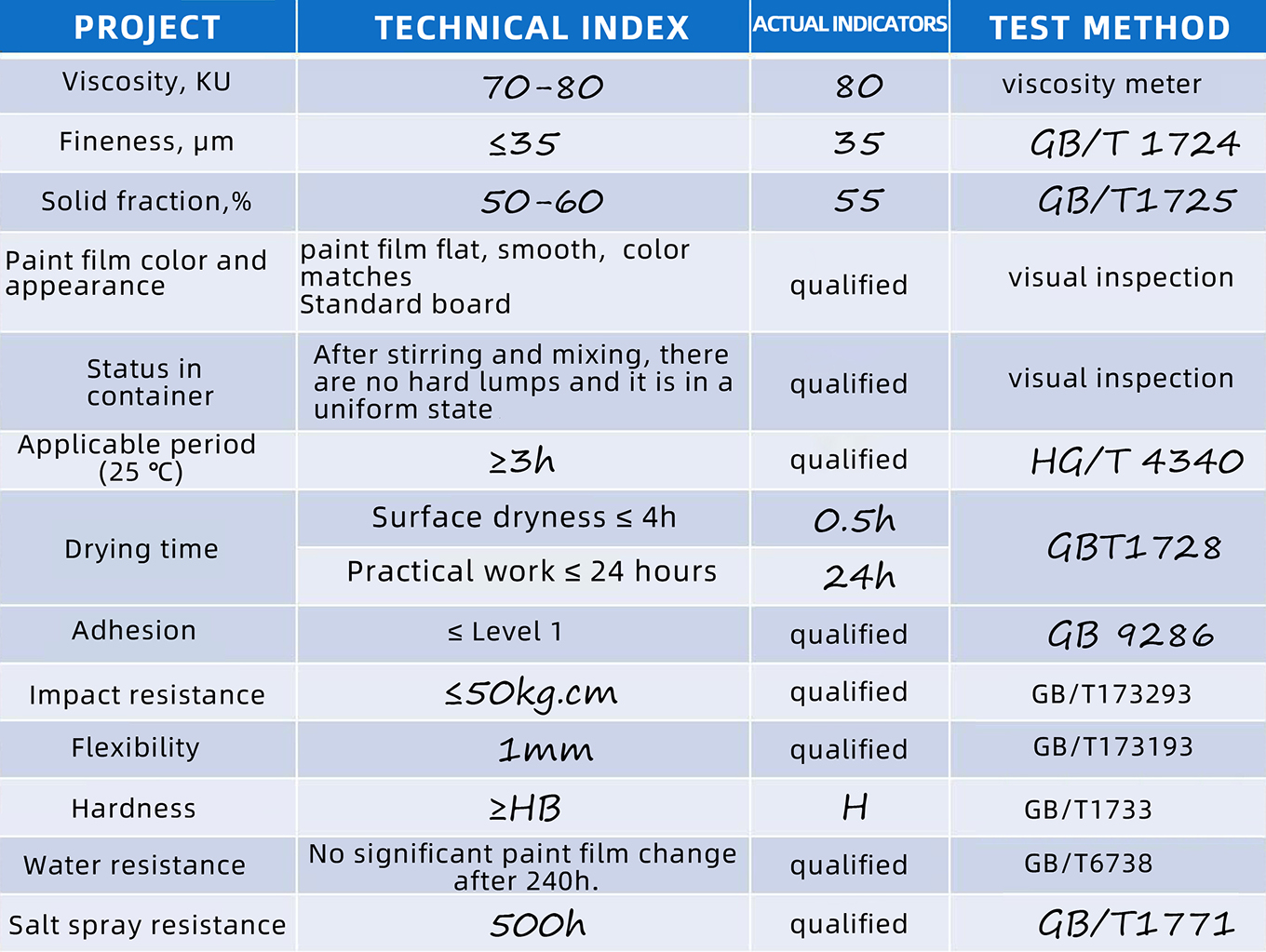

Technical indicators for inspection of waterborne epoxy cloud iron intermediate paint
