CM-5233 Water based Secondary Dispersion Product Manual

characteristic

Can be used as two-component PU or amino baking paint

1. Two component PU: high gloss, high fullness, ultra-high hardness, excellent water resistance

Sex, high burst limit, long activation period

2. Amino baking paint: high gloss, high hardness, good flexibility, and good solvent resistance,

Good boiling resistance, can be recoated

Purpose:

Preparation of engineering machinery, rail transit, industrial equipment and other fields.

Product Performance

Appearance: Milky white liquid

Solid content% (150 ℃, 1h):  44±2

Viscosity, rotational viscometer (CPS):5000-35000

Hydroxyl group: 3.3

Application reference

1. CM 5233 is a secondary dispersion, and color paste can be directly added during paint production;

2. CM 5233 can be used in conjunction with curing agents from most manufacturers such as Wanhua;

3. The paint film prepared with CM 5233 can self dry at room temperature or be baked at low temperature, and the recommended baking temperature should not exceed 80 ℃;

4. Recommended solvents: BCS，DPNB , DPM;

Reference formula and instructions for water-based red hydroxy acrylic topcoat

1. No anti rust pigment filler, substrate: tinplate/cold-rolled sheet; After drying for 2 days and baking at 80 ℃ for 3 hours, various indicators were tested.

Process description:

1 Put 1-8 into the dispersing cylinder in order and stir at high speed to disperse evenly.

2. Grind the above materials with a sand mill and control the speed and temperature. The temperature should not exceed 50 degrees Celsius. Grind them to a fineness of less than 20 microns before proceeding to the paint mixing process.

3. In the paint mixing process, add 9 and 10 in sequence and stir evenly. Add 11 and 12 to adjust the viscosity, then add 13 and stir evenly before packaging.

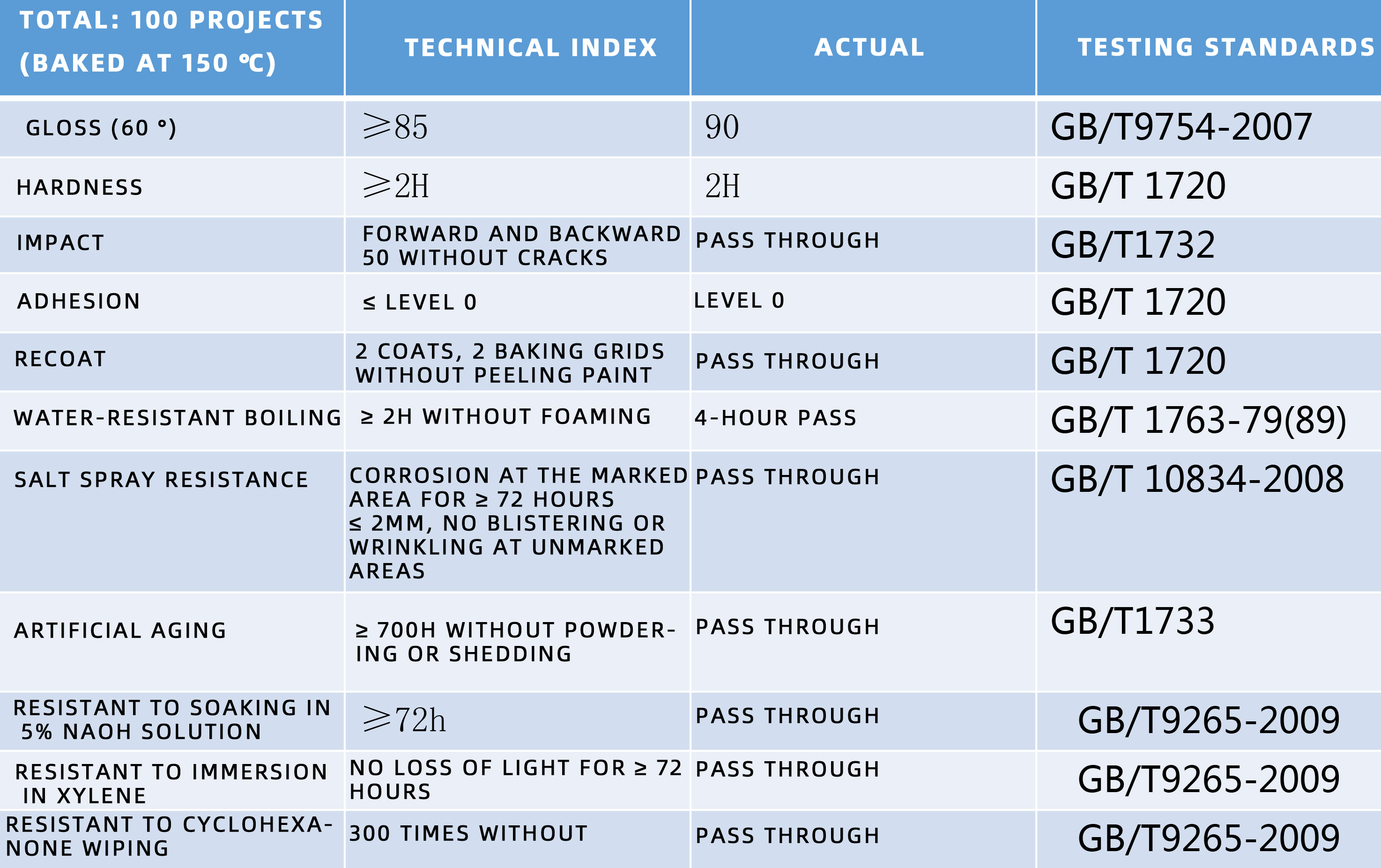

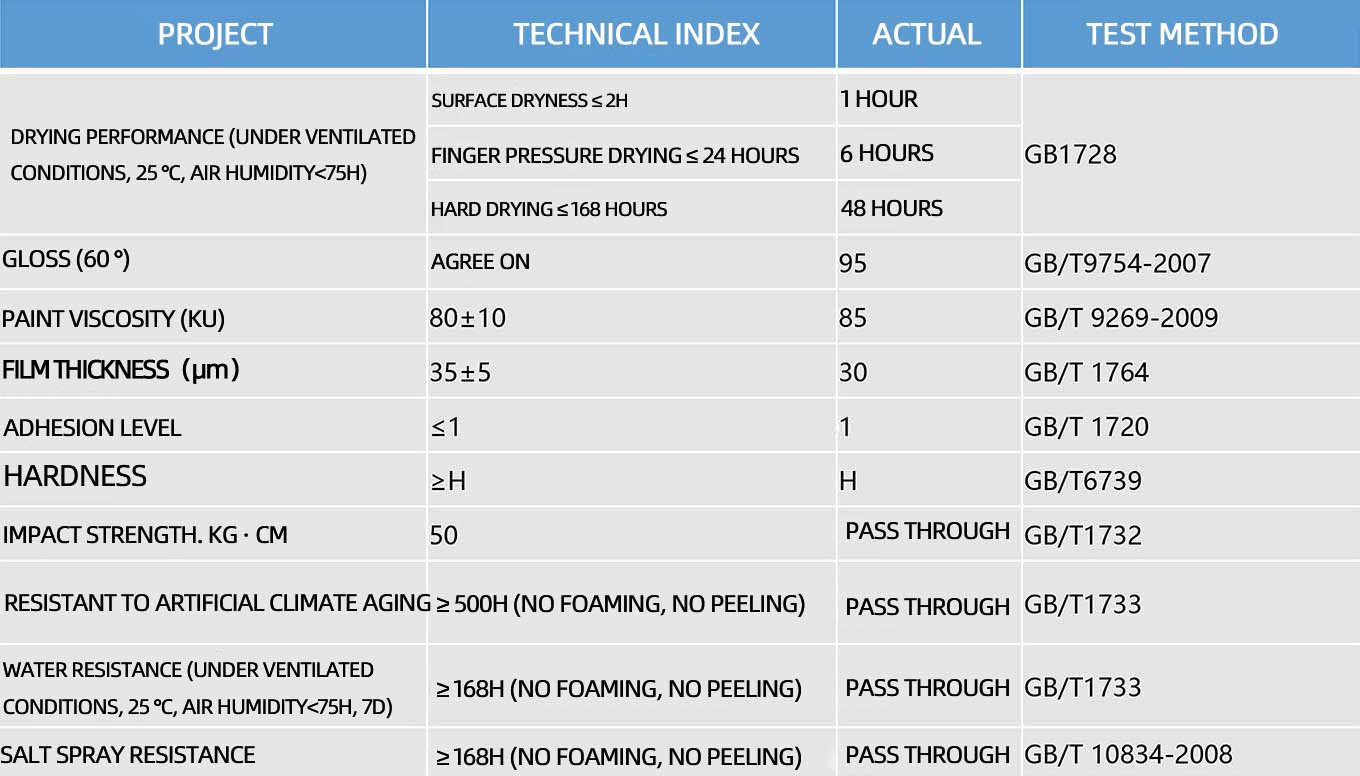

M-5233 Basic Performance Testing Indicators

5233 dispersion baking paint (white) recommended solution

Grinding process ratio

Rutile titanium dioxide：19

BYK 190 dispersant： 0.8

Tego 4100 Wetting Agent： 0.1

TEGO 901W defoamer： 0.1

water： 8

The above grinding, total: 28

CM-5233: 52

DMEA 1.4

water： 4

DB： 1.5

IPA： 8

Yuanbang 5625 amino resin： 3.7

Closed curing agent： 1.4

Total： 100

Reference formula and instructions for water-based dispersion baking paint (white)

1. Substrate: tinplate, baked at 150 ℃ for 30 minutes

Process description: 1 Put 1-5 into the sand mill in order to grind evenly, grind the fineness to below 20 μ m, filter out and set aside for later use.

2. Disperse 6-12 evenly in order to make clear varnish

3. Pour the prepared slurry into the varnish, stir evenly, and then package it.
